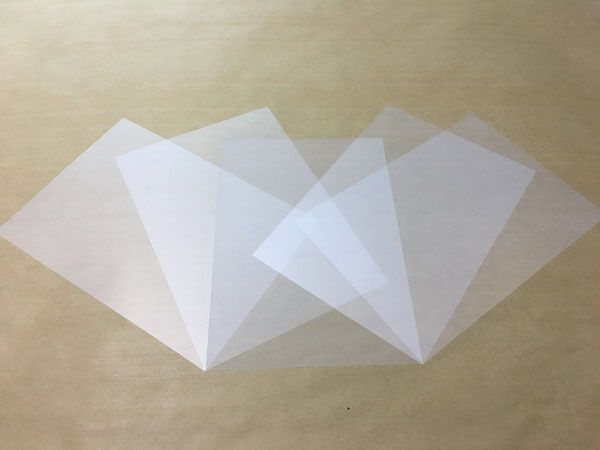

Textured Polycarbonate Film/Sheet
Matte(Velvet)/Polished film which can reduce the high light on the surface and show outstanding printing quality,widely applied to applications including control panels,nameplates,membrane switches,phone keyboard and touch keep board.
We can offer different textures, such as fine velvet, velvet and suded. The opposite side can be matte or polished.
We can offer different textures, such as fine velvet, velvet and suded. The opposite side can be matte or polished.
- A variety of different surface textrues, meet the needs of different transmittance, haze, dilicate touch, low gloss, good visual comfort, excellent bending, wear resistance, heat resistance.
Product Applications - Widely used in lamps, car dashboards, buttons, LED displays, travel bags, advertising decoration, electronic displays, etc.
-
Grades Color Textures Thicknesses Widths GAPC-211 Natural Polished/matte 0.125～0.500 930 or 1220 (0.005′′～0.020′′) (3′ or 4′) GAPC-212 Polished/Fine matte 0.175～1.500 converting available GAPC-411 Polished/velvet (0.007′′～0.060′′) Typical Property Values
Properties Test Methods Units Values PHYSICAL Specific Gravity ASTM D792 g/cm3 1.2 Light Transmission ASTM D1003 % ＞89 Yellowness Index ASTM D1925 — ＜1.0 Water Absorption Equilibrium，24 HRS ASTM D570 % 0.35 MECHANICAL Tensile Strength ASTM D882 psi 8,500 MPa 55 Elongation at break ASTM D882 % ＞90 Impact strength @ 10mils JIS-K6745 In-lbs 120 Tear Strength Propagation ASTM D1922 g/mil 30 folding times(MIT) @0.25mm ASTM D2176-69 double folds 60 @0.5mm ASTM D2176-69 double folds 20 THERMAL Vicat Softening Temperature ASTM D1525-00 ℃ 160 Modified B ISO 306 ℃ 149 Heat Deflection Temp ISO 75 Modified ℃ 142 Heat shrinkage @135℃ ASTM D1204 % <0.2< span=""> ELECTRICAL Dielectric Strength (@ 10mils) ASTM D149 V/mil 1,700 Volume Resistivity@25℃,50%RH ASTM D257 Ohm-cm 1016 Surface Resistivity@25℃,50%RH ASTM D257 Ω/□ 1015 FLAMMABILITY UL Flammability @≥0.5mm(non-halo & REACH conformable)
UL BULLETIN 94 UL94 V-2 @＜0.5mm(non-halo & REACH conformable) HB 0.25mm≤@＜0.5mm (brominated and REACH conformable) V-2 @＜0.25mm(brominated and REACH conformable) VTM-2 Note:VTM-2 or V-2 products customized upon order.
